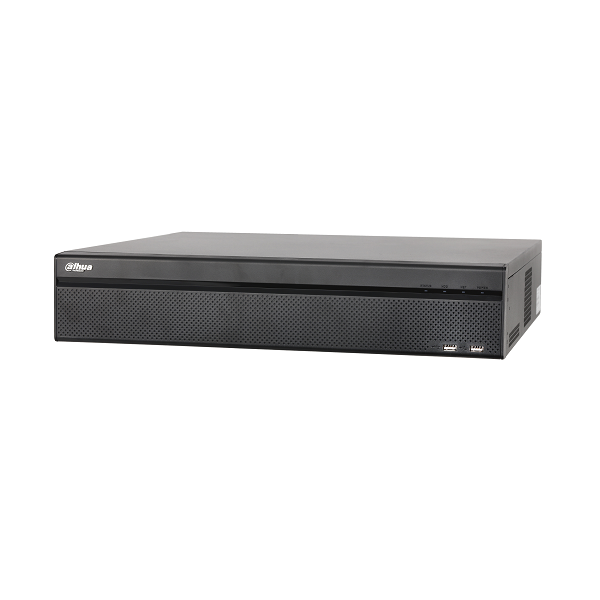

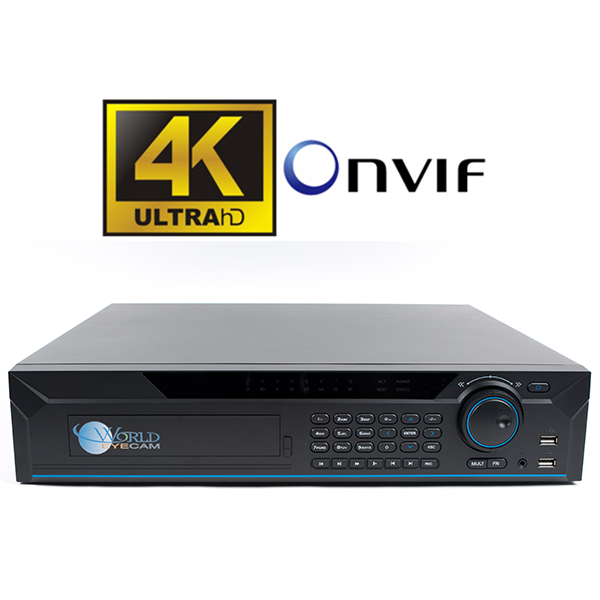

*NEW* 24Channel 1.5U 24PoE 4K & H.265 Pro Network Video Recorder

iMaxCamPro
SKU: WEC504L-24/24P-4KS2

>H.265/H.264/MJPEG/MPEG4 codec decoding >Max 320Mbps incoming bandwidth >Up to 12Mp resolution preview&playback >2HDMI/VGA simultaneous video output >3D intelligent positioning with Dahua PTZ camera >Support RAID 0 /1/5/6/10 32 Channel 1.5U 24 PoE 4K & H.265 Pro Network Video Recorder, 320Mbps, 2 HDMI, 1 VGA, 16CH Alarm, 4 SATA, UL Listed

    • 48% less
    Market price:$3858.00 save $1859.00
  • $1999.00

OR

PRODUCT FEATURES

>H.265/H.264/MJPEG/MPEG4 codec decoding
>Max 320Mbps incoming bandwidth
>Up to 12Mp resolution preview&playback
>2HDMI/VGA simultaneous video output
>3D intelligent positioning with Dahua PTZ camera
>Support RAID 0 /1/5/6/10

System Overview
24 Channel 1.5U 24 PoE 4K & H.265 Pro Network Video Recorder, 320Mbps, 2 HDMI, 1 VGA, 16CH Alarm, 4 SATA, UL Listed. This network video recorder offers a excellent performance and high recording quality for IP video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. Designed as a cost-effective, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multiuser access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.

Functions
RAID 0/1/5/6/10 Offering a balance between storage performance, storage capacity, and data integrity, the NVR features Fruitfull RAID 0/1/5/6/10 for faster and safer recording.

Fisheye Dewarping
The NVR features multiple fisheye dewarping modes to make viewing video easy whether its live or during playback.

4K Resolution
The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live viewing and playback.

Intelligent Video System (IVS)
Working with built-in intelligent video analytics IP cameras, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, People Counting, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.

Point of Sale (POS)
Ideal for grocery and retail stores, the optional POS solution allows the NVR to receive a POS transaction via corresponding video. This feature allows merchants to analyze specific transactions via the Fuzzy search Algorithm.

ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.



System
Main ProcessorQuad-core embedded processor
Operating SystemEmbedded LINUX
Display
Interface2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA
Resolution3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display1st screen:
16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
2nd screen: 1/4/8/9/16
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input16 Channel, Low Level Effective, Green Terminal Interface
Relay Output6 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger EventN/A
Playback and Backup
Sync Playback1/4/9/16
Search ModeTime /Date, Alarm, MD and Exact Search (accurate tosecond)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network/Internal SATA burner/eSATA Device
Storage
Internal HDD4 SATA III Ports, up to 6TB capacity for each HDD
HDD ModeSingle, Raid 0/1/5/6/10 (Enterprise-level HDDs are recommended)
eSATA1 eSATA port
SASN/A
Auxiliary Interface
Front CoverN/A
USB4 ports (2 Rear USB3.0,2 Front USB2.0)
RS2321 Port, for PC Communication and Keyboard
RS4851 Port, for PTZ Control
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio and Video
IP Camera Input16/32/64 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Recording
CompressionH.265/H.264/MJPEG/MPEG4
Resolution12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Record Rate320Mbps
Bit Rate16kbps~20Mbps for per channel
Record ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Network
Interface1 RJ-45 port (10/100/1000Mbps)
Ethernet Port1 Independent 1000Mbps Ethernet Port
PoE16 ports (IEEE802.3af/at)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
Optical Fiber InterfaceN/A
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, CGI Conformant
Electrical
Power SupplySingle, AC 100~240V, 50/60 Hz
Power Consumption<17.5W (without HDD)
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction

Dimensions

(W×D×H)

2U, 440mm×450.1mm×95mm (17.3" x 17.7" x 3.7")
Net Weight7kg (15.4 lb) (without HDD)
Gross Weight9.5kg(20.94 lb)
Certifications
CEEN55022, EN55024, EN50130-4, EN60950-1
FCCPart15 subpartB,ANSI C63.4-2014
ULUL60950-1+CAN/CSA C22.2 No.60950-1



DOWNLOADS

• WEC504L-24/24P-4KS2 Quick Start Guide

•  WEC504L-24/24P-4KS2 Data Sheet



    • SKU
      WEC504L-24/24P-4KS2
    • Weight
      20.94 lbs
  • Manufacturer
    iMaxCamPro
  • Camera Type
    PTZ
  • Camera Signal
    IP
  • Number of Channels
    32ch
  • Recorder Type
    NVR (with POE Ports)
  • Network Cable
    I have my own network cables, 50 Feet CAT6 Cable, 100 Feet CAT6 Cable, 150 Feet CAT6 Cable, 200 Feet CAT6 Cable, 300 Feet CAT6 Cable, Cat 5 Cable 1000 feet spool, CAT6 Network Cable 1000 Feet Non UL, Black
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Hard Drive #2
    I Will Install My Own Hard Drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
  • Hard Drive #3
    I Will Install My Own Hard Drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Hard Drive #4
    I Will Install My Own Hard Drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
