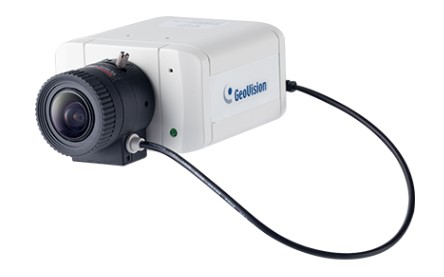

4MP H.265 Super Low Lux WDR Pro D/N Box IP Camera

Geovision
SKU: GV-BX4700
  • 1/3"progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Dual streams from H.265, H.264 and MJPEG
  • Up to 20 fps at 2592 x1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
  • P-Iris for auto iris adjustment
  • Built-in / external microphone
  • Two-way audio
  • One sensor input and alarm output
  • TV-out support
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Wide Dynamic Range Pro (WDR Pro)
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Day and night function (with removable IR-cut filter)
  • Varifocal megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
    • 41% less
    Market price:$430.00 save $178.00
  • $252.00

OR
Camera packaging contents:


  • H.265 Box Camera
  • Terminal Block (2-Pin and 3-Pin)
  • Fixed Focal or Varifocal Megapixel Lens
  • Six Lens Rings (only for Varifocal Lens)
  • Video Out Wire
  • Camera Holder
  • Holder Screw x 2
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card
  • 1/3"progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Dual streams from H.265, H.264 and MJPEG
  • Up to 20 fps at 2592 x1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
  • P-Iris for auto iris adjustment
  • Built-in / external microphone
  • Two-way audio
  • One sensor input and alarm output
  • TV-out support
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Wide Dynamic Range Pro (WDR Pro)
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Day and night function (with removable IR-cut filter)
  • Varifocal megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
Introduction

The GV-BX4700 is a series of indoor IP cameras containing a varifocal and a fixed focal model. GV-BX4700 can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port which supports wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.


Rear Panel




Dimensions








Standard



Wall Mount



Ceiling Mount



Desk Mount


Optional


GV-Housing102



Wall Mount



Convex Corner Mount



Concave Corner Mount



Pole Mount



Wall Mount



Convex Corner Mount



Concave Corner Mount



Pole Mount








Firmware


Software Download & Upgrading


Version History


GV-IP Camera Bandwidth and Recording Size Calculator


[ebook on iBooks Store] Quick Start Guide


[ebook on Google Play] Quick Start Guide


GV-IPCAM_Spec_table.pdf

Datasheet_IPCamH265BX4700.pdf

GV-IPCAM_Comparison_table.pdf

Item No. (Sales Part No.)Description
140-WFUSB-000GV-WiFi Adapter

Model NoNameDetails
GV-Mount300 / GV-Mount300-1Convex Corner Adapter Kit
Dimensions: 238.6 x 409.5 mm (9.4 x 16.1") Weight: 4.27 kg (9.41 lb)
GV-Mount310 / GV-Mount310-1Concave Corner Adapter Kit
Dimensions: 123.3 x 393.1 mm (4.9 x 15.5") Weight: 2.96 kg (6.53 lb)
GV-Mount400 / GV-Mount400-1Pole Mount Bracket Kit (Ø 4 ~ 6")
Bracket: 241 x 161 mm (9.5 x 6.3") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 / GV-Mount410-1Pole Mount Bracket Kit (Ø 6 ~ 7.5")
Bracket: 241 x 161 mm (9.5 x 6.3") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Housing102Housing Box (with heater and fan)
Dimensions: 406 x 145 x 109 mm (16 x 5.7 x 4.3") Weight: 4.69 kg (10.34 lb) (including Supporting Tube) Start-up Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Operation Temperature: ‐40°C ~ 50°C (-40°F ~ 122°F) Heater: 15°C (59°F) On / 25°C (77°F) Off Fan: 35°C (95°F) On / 25°C (77°F) Off Power board: 24V AC / 12V DC input
GV-Housing103 (not supported by GV-BX4700-8F)Housing Box (with IR)
Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12") Weight: 7 kg (15.43 lb) Start-up Temperature: ‐20°C ~ 50°C (‐4°F ~ 122°F) Operation Temperature: ‐30°C ~ 50°C (‐22°F ~ 122°F) IR: 6 IR LEDs with up to 60m (196.85ft) IR effective distance Power: 12V DC, 1A input
GV-PA191 PoE AdapterPower over Ethernet (PoE) Adapter
The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE SwitchThe GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power AdapterContact your sales representative for the countries and areas supported.
GV-Relay V2
The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-WiFi Adaptor V2
Weight: 0.01 kg (0.02 lb) Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10") Supplied with Mini USB to standard USB adapter
    • SKU
      GV-BX4700
    • Weight
      5 lbs
  • Manufacturer
    Geovision
  • Camera Type
    Box
  • Camera Signal
    IP
  • Camera Resolution
    2560 x 1440
  • Lens Size
    2.8mm
  • Optical Zoom
    Varifocal
  • Remote Login Support
    No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
