GV-LPR1200 1MP IP LPR Cam 20M with Built-in recognition (All in one) with power adapter, B/W 610-...

        GV-LPR1200 1MP IP LPR Cam 20M with Built-in recognition (All in one) with power adapter, B/W 610-LPR1200-000

        Geovision
        SKU: 84-LPR1200-001U
        • Megapixel B/W progressive scan CCD
        • Motorized varifocal lens for remote focus / zoom adjustment
        • Dual streams from MJPEG or H.264
        • Up to 30 fps at 1280 x 720
        • Maximum speed 200 km/h (124.27 mph)
        • Built-in LPR processor to perform recognition
        • Recognition for reflective License Plate only
        • Standalone database
        • Vandal resistance (IK10 for metal casing)
        • Ingress protection (IP67)
        • Maximum IR distance 20 m (65.6 ft)
        • Built-in heater and fan
        • Support for TV-out
        • 10x optical zoom
        • Two-way audio
        • Recognized plate numbers export
        • Support for I/O (2 in / 2 out)
        • Defog
        • Motion detection
        • Text Overlay
        • IP address filtering
        • Supports iPhone, iPad, Android & 3GPP
        • ONVIF (Profile S) conformant
        • 30 languages on Web interface
          • 100% off
          Market price:$2063.00save $2063.00
        • $0.00

        OR
        Camera packaging contents:


        • The GV-LPR1200 camera
        • Screw Anchor x 4
        • Screw x 4
        • Washer x 4
        • Torx Wrench x 1
        • Power Adapter (DC 12V, 5A)
        • AC Power Cord
        • Silica Gel Bag x 1
        • Adhesive tape for Silica Gel Bag x 1
        • GV-IP LPR Camera Software CD
        • GV-NVR Software DVD
        • GV-ASManager Software DVD
        • GV-LPR Camera Installation Guide
        • Warranty Card
        • Megapixel B/W progressive scan CCD
        • Motorized varifocal lens for remote focus / zoom adjustment
        • Dual streams from MJPEG or H.264
        • Up to 30 fps at 1280 x 720
        • Maximum speed 200 km/h (124.27 mph)
        • Built-in LPR processor to perform recognition
        • Recognition for reflective License Plate only
        • Standalone database
        • Vandal resistance (IK10 for metal casing)
        • Ingress protection (IP67)
        • Maximum IR distance 20 m (65.6 ft)
        • Built-in heater and fan
        • Support for TV-out
        • 10x optical zoom
        • Two-way audio
        • Recognized plate numbers export
        • Support for I/O (2 in / 2 out)
        • Defog
        • Motion detection
        • Text Overlay
        • IP address filtering
        • Supports iPhone, iPad, Android & 3GPP
        • ONVIF (Profile S) conformant
        • 30 languages on Web interface
        Introduction

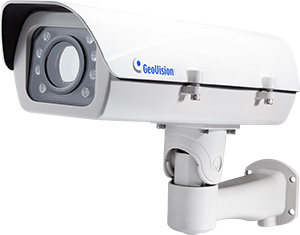

        GV-LPR1200 is a 1 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 200 km/h (124.27 mph) or less. With its multiple high power LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear license plate capture for one lane under low-light conditions. The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. It is weather proof (IP67) and also able to work in environments with temperatures ranging from -40°C (-40°F) to 50°C (122°F).



        GV-LPR1200 is capable of recognizing the license plate numbers with the built-in LPR processor. GV-LPR1200 can compare captured license plates either with a standalone database created on GV-LPR1200, or a database downloaded from the access control software GV-ASManager. When there is a match, GV-LPR1200 will open a gate or barrier.











        Standard






        Optional



        Convex Corner Mount



        Concave Corner Mount



        Pole Mount



        Firmware


        Software Download & Upgrading


        Version History


        Datasheet_IPLPR1200.pdf

        GV-LPR%20CAM_Comparison%20Chart.pdf


        Model NoNameDetails
        GV-Mount300Convex Corner Adapter Kit
        Dimensions: 238.6 x 409.5 mm (9.4 x 16.1") Weight: 4.27 kg (9.41 lb)
        GV-Mount310Concave Corner Adapter Kit
        Dimensions: 123.3 x 393.1 mm (4.9 x 15.5") Weight: 2.96 kg (6.53 lb)
        GV-Mount400Pole Mount Bracket Kit (Ø 4 ~ 6")
        Bracket: 241 x 161 mm (9.5 x 6.3") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6"
        GV-Mount410Pole Mount Bracket Kit (Ø 6 ~ 7.5")
        Bracket: 241 x 161 mm (9.5 x 6.3") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5"
        GV-Relay V2
        Working with the GV-Relay V2, the GV-IP LPR camera is capable of driving the loads of relay outputs over 5 volts. The GV-Relay V2 provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
        GV-POE SwitchThe GV-POE Switch can be used for data transmission only. It does not provide power to GV-IP LPR cameras.


        Camera
        Image SensorMegapixel B/W progressive scan CCD
        Picture Elements1280 (H) x 720 (V)
        Shutter SpeedAutomatic: 1/1000 ~ 1/10000 sec Manual: 1/250 ~ 1/2000 sec
        White BalanceAuto / Manual (2800K ~ 8500K)
        S/N Ratio52 dB
        Max. Speed200 km/h (124.27 mph)
        Lens
        Megapixel1 MP
        Lens TypeMotorized varifocal lens
        Focal Length4.7 mm ~ 47 mm
        Maximum ApertureF/3.5
        Image Format1.3"
        Horizontal FOV59.9° ~ 6.4°
        OperationFocusAuto
        Zoom10x optical zoom
        IrisAuto
        IR LED Quantity8 high power IR LEDs
        IR Distance10 ~ 20 m (32.8 ~ 65.6 ft)
        Operation
        Video CompressionH.264, MJPEG
        Video StreamDual streams from H.264 and MJPEG
        Frame Rate30 fps at 1280 x 720 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
        Image SettingBrightness, Contrast, Sharpness, Gamma, Image Orientation, Shutter Speed, Defog, Maximum Video Gain
        Audio CompressionG.711, AAC (Optional)
        Audio SupportTwo-way audio
        Video Resolution
        Main Stream1280 x 720 (16:9)
        Sub Stream640 x 360 (16:9)
        TV-OutBNC connector (640 x 480 resolution)
        Network
        Interface10/100/1000 Base-T Ethernet, RJ-45 connector
        ProtocolDHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SMTP, SNMP, TCP, UDP, UPnP, 3GPP/ISMA
        Mechanical
        Temperature DetectorYes
        Camera Angle AdjustmentPan0° ~ 330°
        Tilt0° ~ 90°
        ConnectorsPowerDC 12V
        EthernetRJ-45
        Audio1 In (microphone jack, 3.5 mm / 0.14”) 1 Out (Stereo phone jack, 3.5 mm / 0.14”)
        Digital I/O2 In / 2 Out
        RS-485RS-485+ / RS-485- (for recognition data output)
        Local StorageMicro SD card slot (SD/SDHC, SD version 2.0 only, Class 10) * SDXC and UHS‐I card types are not supported.
        TV-OutBNC connector (640 x 480 resolution)
        Mini USBMini USB port on the circuit board (for UMTS)
        LED IndicatorN/A
        General
        Operating Temperature-40°C ~ 50°C (-40°F ~ 122°F)
        Humidity10% ~ 90% (non-condensing)
        Power SourceDC 12V, 5A
        Max. Power Consumption54 W
        DimensionsWithout support rack406 x 145 x 109 mm (16" x 5.7" x 4.3")
        Cable Length1 m (3.28 ft)
        WeightWith rack3.32 kg (7.32 lb)
        Without support rack2.62 kg (5.78 lb)
        Ingress ProtectionIP67
        Vandal ResistanceIK10 for metal casing
        Heater On-40°C ~ 5°C (-40°F ~ 41°F)
        FanConstantly On
        RegulatoryCE, FCC, C-Tick, RoHS compliant
        Region of License PlateArgentina / Australia / Austria / Belgium / Brazil / Bulgaria / Chile / China / Columbia / Cyprus / Czech / France / Germany / Guernsey / Hong Kong / Hungary / Ireland / Italy / Israel / Mexico / Netherlands / New Zealand / Norway / Poland / Portugal / Qatar / Russia / Slovakia / South Africa / Spain / Taiwan / UK / USA
        Web Interface
        Installation & ManagementWeb-based configuration
        Firmware UpgradeRemote upgrade through Web Browser GV-IP Device Utility included in the Software DVD
        Access from Web BrowserLive View, Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Text Overlay
        LanguageArabic / Bulgarian / Czech / Danish / Dutch / English / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
        Application
        Network StorageGV-System (GV-DVR/NVR), GV-VMS, GV-Recording Server
        Smart Device Access
        • GV-Eye for Android and iOS
        • Embedded 3GPP/ISMA browser
        Live ViewingIE, GV-Edge Recording Manager
        CMS Server supportGV-Control Center, GV-Center V2, GV-Vital Sign Monitor
        LPR ManagementGV-ASManager





          • SKU
            84-LPR1200-001U
          • Weight
            5 lbs
        • Manufacturer
          Geovision
        • Camera Type
          License Plate Camera
        • Camera Signal
          IP
        • Camera Resolution
          1280 x 720
        • Lens Size
          10X
        • Optical Zoom
          Varifocal
        • Remote Login Support
          No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
