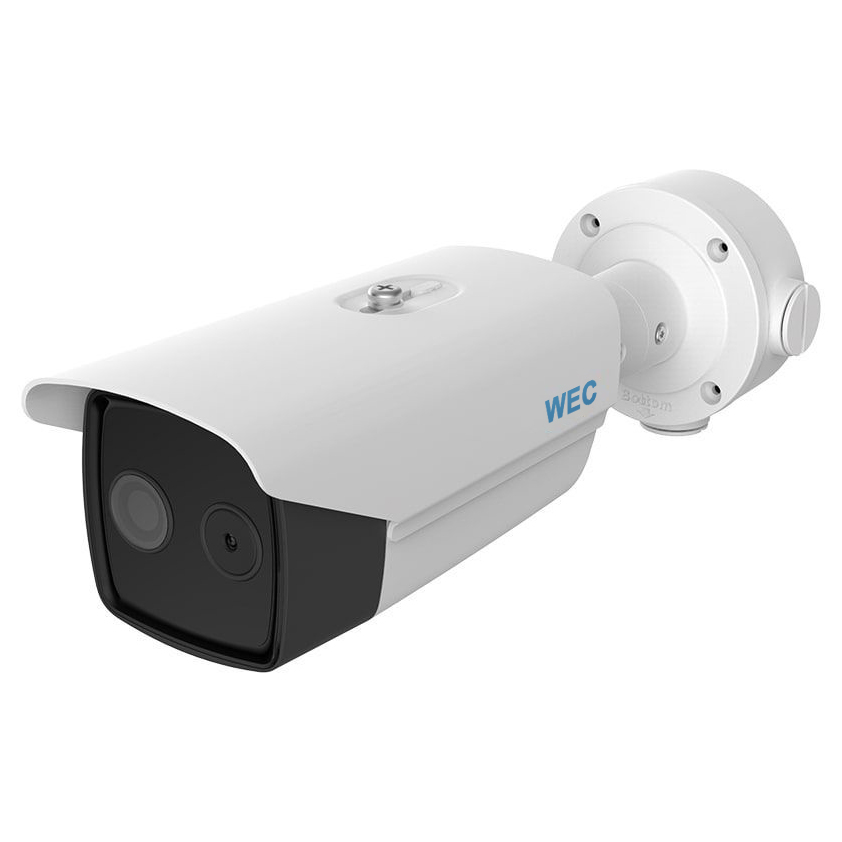

2MP Thermal & Optical Network Bullet Camera | SIP42B4ATH/4

Worldeyecam
SKU: WEC-42B4ATH/4

Features

  • Smart Function (Thermal Imaging)
  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (@25°C, F#=1.1)
  • Powerful behavior analysis function, based on deep learning algorithm: Line Crossing, Intrusion, Region Entrance & Exit
  • Reliable temperature exception alarm function
  • The advanced fire detection algorithm
  • Bi-spectrum image fusion, picture in picture preview
  • Thermal Imaging Module Function
  • 160 × 120 (the resolution of the output image is 320 × 240) resolution sensor, high sensitivity sensor, support contrast adjustment
  • Shutter adjustment in various modes
  • 3D DNR, 15 palettes of color adjustable, image detail enhancement
  • Mirror image, digital zoom ×2, ×4, ×8, and local output
Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution160 × 120 (the resolution of the output image is 320 × 240)
Pixel Interval17μm
Response Waveband8μm to 14μm
NETDless than 40 mk (@25°C,F#=1.1)
Lens (Focal Length)3.1 mm
MRAD5.48 mrad
Field of View50° × 37.2° (H × V)
Min. Focusing Distance0.2m
ApertureF1.1
Image Sensor1/2.8” Progressive Scan CMOS
Minimum Illumination

Color: 0.002 Lux @(F1.5,AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON)

Electronic Shutter1s to 1/100,000s
Day / NightIR cut filter
Digital Noise Reduction3D DNR
Wide Dynamic RangeDWDR
Focal Length4mm
Max. ApertureF1.5
Angle of View87° × 46.2°(H × V)
IR DistanceUp to 40 m
Video CompressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
Video Bitrate

32 Kbps to 16 Mbps

Video Resolution

1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288

Video Frame Rate

Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))

Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Image EnhancementFusion view of thermal view and overlaid details of the optical channel; Combins details of thermal and optical image PIP, overlay thermal image on optical image
Behavior DetectionLine Crossing, Intrusion, Region Entrance, and Region Exiting
Intelligent IdentificationFire Detection
Storagelocal storage and NAS (NFS,SMB/CIFS), ANR
Network ProtocolIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
General Function

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

APIOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
Network Interface1 RJ45 10M/100M Self-adaptive Ethernet interface
Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
RS4851 RS-485 interface
Storage CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G)
Management SoftwareiVMS-4200
Web ViewerIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
Reset ButtonYes
Audio In1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Audio OutLinear Level; Impedance: 600Ω
Alarm In2-ch inputs
Alarm Out2-ch relay outputs, alarm response actions configurable
Operating Temperature-40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC± 20% PoE (802.3af, class 4)
Power Consumption12 VDC ± 20%: max. 12W PoE (802.3af, class 4)
Ingress ProtectionIP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensions352.4 mm × 113.5 mm × 114.7 mm (13.9" × 4.5" × 4.5 ")
WeightApprox. 1.5Kg (3.3lb)




    • 33% less
    Market price:$1977.00 save $657.00
  • $1320.00

OR

Features

  • Smart Function (Thermal Imaging)
  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (@25°C, F#=1.1)
  • Powerful behavior analysis function, based on deep learning algorithm: Line Crossing, Intrusion, Region Entrance & Exit
  • Reliable temperature exception alarm function
  • The advanced fire detection algorithm
  • Bi-spectrum image fusion, picture in picture preview
  • Thermal Imaging Module Function
  • 160 × 120 (the resolution of the output image is 320 × 240) resolution sensor, high sensitivity sensor, support contrast adjustment
  • Shutter adjustment in various modes
  • 3D DNR, 15 palettes of color adjustable, image detail enhancement
  • Mirror image, digital zoom ×2, ×4, ×8, and local output
Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution160 × 120 (the resolution of the output image is 320 × 240)
Pixel Interval17μm
Response Waveband8μm to 14μm
NETDless than 40 mk (@25°C,F#=1.1)
Lens (Focal Length)3.1 mm
MRAD5.48 mrad
Field of View50° × 37.2° (H × V)
Min. Focusing Distance0.2m
ApertureF1.1
Image Sensor1/2.8” Progressive Scan CMOS
Minimum Illumination

Color: 0.002 Lux @(F1.5,AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON)

Electronic Shutter1s to 1/100,000s
Day / NightIR cut filter
Digital Noise Reduction3D DNR
Wide Dynamic RangeDWDR
Focal Length4mm
Max. ApertureF1.5
Angle of View87° × 46.2°(H × V)
IR DistanceUp to 40 m
Video CompressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
Video Bitrate

32 Kbps to 16 Mbps

Video Resolution

1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288

Video Frame Rate

Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))

Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Image EnhancementFusion view of thermal view and overlaid details of the optical channel; Combins details of thermal and optical image PIP, overlay thermal image on optical image
Behavior DetectionLine Crossing, Intrusion, Region Entrance, and Region Exiting
Intelligent IdentificationFire Detection
Storagelocal storage and NAS (NFS,SMB/CIFS), ANR
Network ProtocolIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
General Function

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

APIOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
Network Interface1 RJ45 10M/100M Self-adaptive Ethernet interface
Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
RS4851 RS-485 interface
Storage CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G)
Management SoftwareiVMS-4200
Web ViewerIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
Reset ButtonYes
Audio In1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Audio OutLinear Level; Impedance: 600Ω
Alarm In2-ch inputs
Alarm Out2-ch relay outputs, alarm response actions configurable
Operating Temperature-40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC± 20% PoE (802.3af, class 4)
Power Consumption12 VDC ± 20%: max. 12W PoE (802.3af, class 4)
Ingress ProtectionIP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensions352.4 mm × 113.5 mm × 114.7 mm (13.9" × 4.5" × 4.5 ")
WeightApprox. 1.5Kg (3.3lb)




    • SKU
      WEC-42B4ATH/4
    • Weight
      1.96 lbs
  • Manufacturer
    Worldeyecam
  • Camera Type
    Bullet
  • Camera Signal
    IP
  • Camera Resolution
    2 Megapixel
  • Lens Size
    4.0mm
  • Optical Zoom
    Fixed
