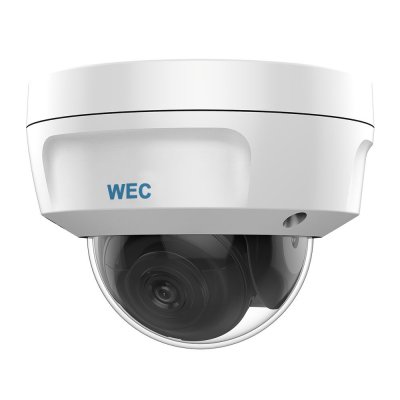

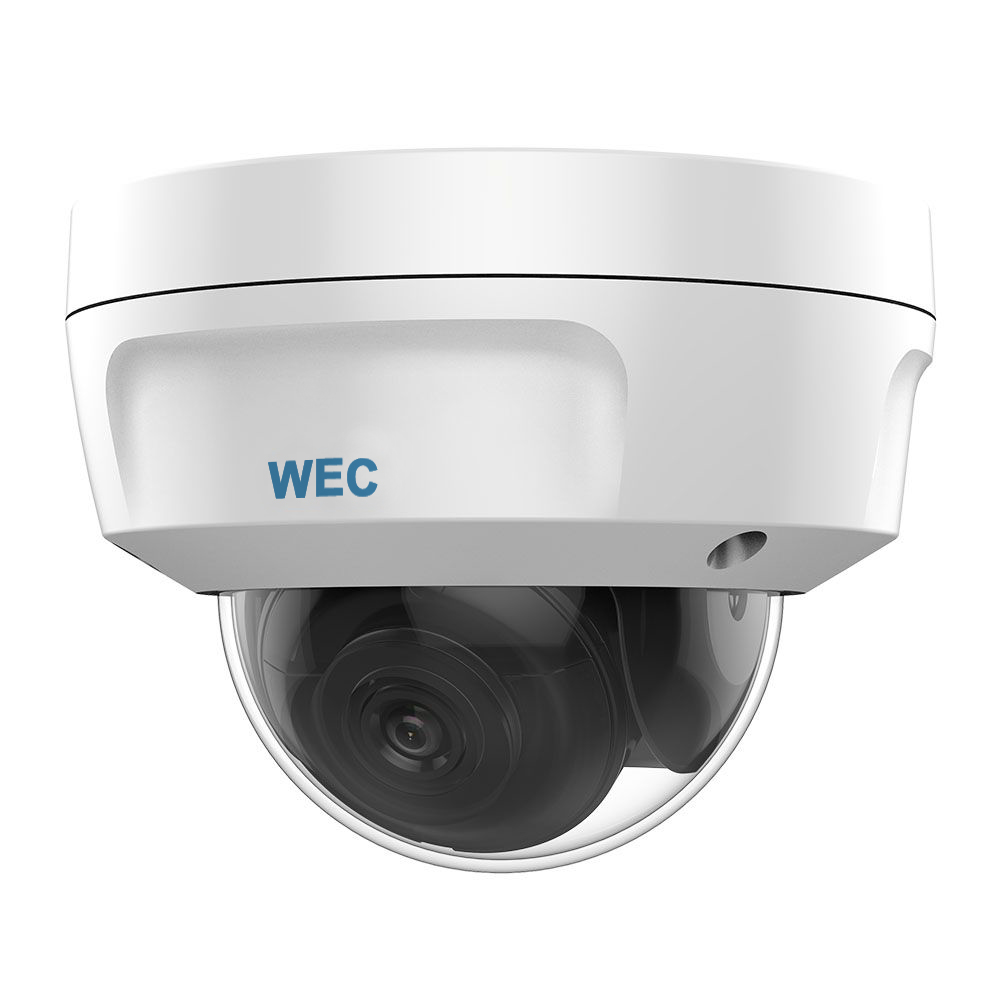

WEC SIP34D3M/28-C | 4 MP Fixed Dome Network Security Camera
SKU: WEC34D3M/28-C
Vandal Proof Dome (VPD) Networking / Internet Protocol Security Camera (IPC) with build-in Mic, Fixed 2.8mm, 1/3",4MP@20FPS, EXIR(98ft), True WDR, Built-in memory card slot, support microSD card, up to 256 GB. UL Listed professional surveillance products.
Features
- High-quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong backlighting due to 120 dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range up to 98ft
- Support up to 256 GB SD card storage
- Built-in microphone for real-time audio security
| Image Sensor | 1/3" progressive scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Electronic Shutter | 1/3 s to 1/100, 000 s |
| Day / Night | IR cut filter |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Angle of View | horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° |
| IR Distance | Distance up to 30m (98.43ft) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bitrate | 32 Kbps to 8 Mbps |
| Video Resolution | 2560 × 1440 |
| Video Frame Rate | Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Storage | NAS (NFS, SMB/CIFS), ANR |
| Network Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Storage Card | Built-in memory card slot, support microSD card, up to 256 GB |
| Management Software | iVMS-4200, ENS Vision |
| Web Viewer | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Reset Button | YES |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% PoE: 802.3af, Class 3 |
| Power Consumption | 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Ingress Protection | IP67 |
| Dimensions | Camera Dimension Ø120 mm × 92.2 mm (4.72" × 3.63") Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Camera Weight Approx. 440 g (1.0 lb.) With Package Weight Approx. 680 g (1.5 lb.) |
