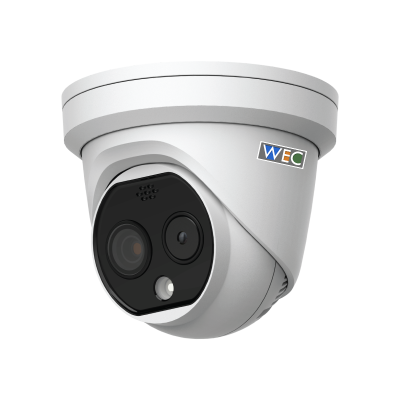

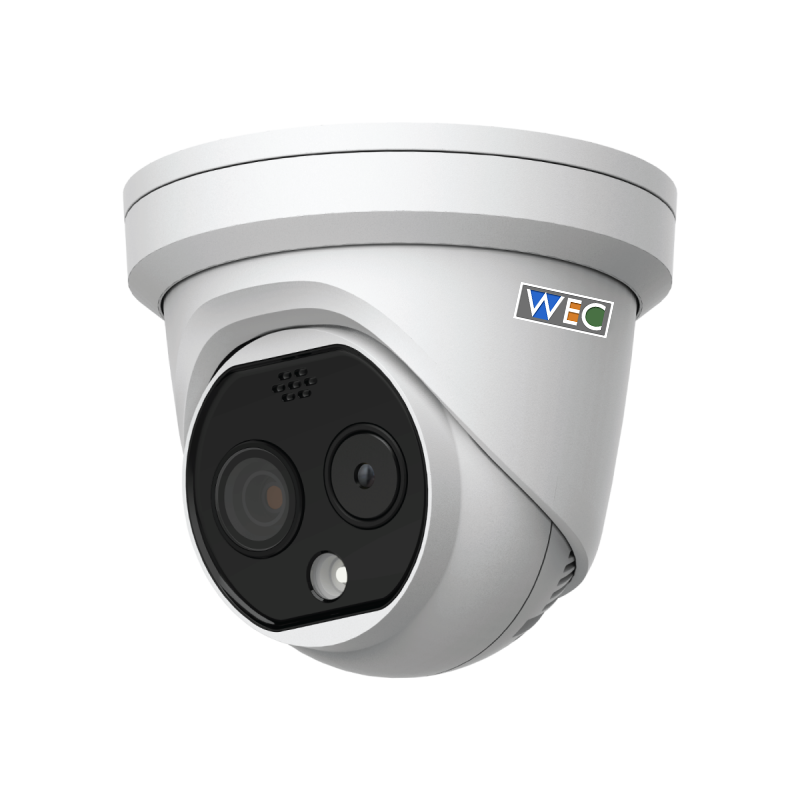

WEC DS-2TD1217B-3/PA | Thermographic Turret Camera
SKU: WEC-DS-2TD1217B-3/PAWDR, Thermal Bullet, Temperature measurement, Audio/Alarm,Micro SD Slot,3D DNR, 4MP resolution, 6mm Fixed Lens, Optical:1/2.7", 4MP@30FPS, ICR 6.2mm Lens
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Product Details
WDR, Thermal Bullet, Temperature measurement, Audio/Alarm,Micro SD Slot,3D DNR, 4MP resolution, 6mm Fixed Lens, Optical:1/2.7", 4MP@30FPS, ICR 6.2mm Lens
Features
Smart Function (Thermal Imaging)
160x120 High-Resolution Thermal Channel, High Sensitivity Sensor
Accuracy: ±0.9℉ at 4.92 feet to 9.84feet (1.5m to 3m)
Reliable Temperature Exception Alarm Function
3D DNR, Image Detail Enhancement
White Light and Audio Alarm
Thermal Module | |
Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
Max. Resolution | 160 × 120 |
Pixel Interval | 17μm |
Response Waveband | 8μm to 14μm |
NETD | less than 40 mk (@25°C,F#=1.1) |
Lens (Focal Length) | 3.1 mm |
IFOV | 5.48 mrad |
Field of View | 50° × 37.2° (H x V) |
Min. Focusing Distance | 0.7 ft (0.2 m) |
Aperture | F1.1 |
Image Sensor | 1/2.7” Progressive Scan CMOS |
---|---|
Minimum Illumination | Color: 0.0089 lux @ (ƒ/1.6, AGC on), B/W: 0.0018 lux @ (ƒ/1.6, AGC on) |
Electronic Shutter | 1 s to 1/100,000 s |
Day / Night | IR cut filter |
Digital Noise Reduction | 3D DNR |
Wide Dynamic Range | 120dB |
Focal Length | 4mm |
Angle of View | 84° × 44.8° (H × V) |
IR Distance | Up to 49 ft (15 m) |
Video Compression | H.265/H.264/MJPEG |
Video Resolution | 2688 × 1520, 1920 × 1080, 1280 × 720 |
Video Frame Rate | Main Stream: Sub Stream: |
Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
Image Enhancement | Fusion view of thermal view and overlaid details of the optical channel; Combins details of thermal and optical image PIP, overlay thermal image on optical image |
Behavior Detection | Line Crossing, Intrusion, Region Entrance, and Region Exiting |
Intelligent Identification | Fire Detection |
Storage | Built-in microSD card slot, supports microSD/SDHC/SDXC card (up to 256 GB), supports manual/alarm recording |
Network Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
General Function | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
API | Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform |
Network Interface | 1 RJ45 10M/100M Self-adaptive Ethernet interface |
Video Output | 1.0 V [p-p]/75 Ω, BNC, PAL/NTSC |
RS485 | 1 RS-485 interface |
Storage Card | Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G) |
Management Software | iVMS-4200 |
Web Viewer | IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac) |
Reset Button | Yes |
Audio In | 1 x 3.5 mm mic in/line in interface, |
Audio Out | line input: 2 to 2.4 V [p-p], output impedance: 1K Ω ±10%, impedance: 600 Ω |
Alarm In | 1CH inputs (0−5 VDC) |
Alarm Out | 1CH relay outputs, alarm response actions configurable |
Operating Temperature | 50° to 95° F (10° to 35° C) (indoor and windless environment use only)/humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ±20%, two-core terminal block / PoE (802.3af, class 3) |
Power Consumption | 12 VDC ±20%: 0.5 A, maximum 6 W / PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, maximum 6.5 W |
Dimensions | 5.45" × 5.45" × 4.85" (138.3 mm × 138.3 mm × 123.1 mm) |
Weight | 2.07 lb (940 g) |
