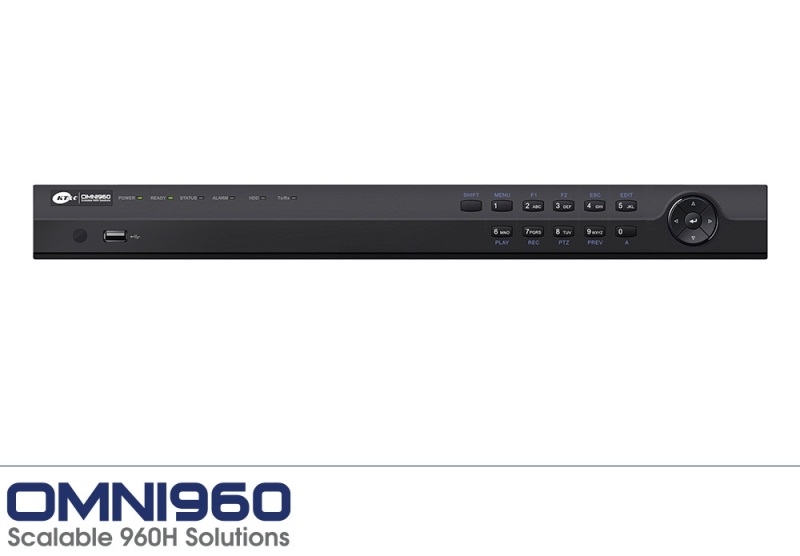

8 Channel 960H DVR
- WD1 960x480 recording delivers 36% more detail than traditional 4CIF (704x480)
- H.264 Compression for efficient HDD utilization and streaming
- NTSC/PAL automatic signal selection
- WD1 real-time live display and recording all channels; real time playback on up to 4 channels
- Independent channel setup for resolution/FPS/bitrate/image quality/normal & event record
- HDMI (720p/1080p) + VGA (to 1920x1080) + BNC main monitors support any type of display
- Simultaneous high bandwidth recording (480 NTSC/400 PAL @WD1) plus sub-stream recording for reduced bandwidth remote viewing
- Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
- Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
- User friendly GUI with graphical icons and visual indicators - Easy to use on-screen menus include digital zoom and instant playback of recent video - Operate using front panel controls, wheel mouse or included IR remote
- Quickly locate and review event video - Search by date/time, or preview images by pointing along a color coded timeline of record type - Tag video of interest for easy retrieval or export - Play based on results of extensive event/alarm log search - Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list instances of motion in that area for review by the operator
- Watermarking for validation of recorded video
- Easy router setup for remote access: uPnP automatically sets up port forwarding (router must support/allow uPnP)
- Free DDNS Service – static IP address is not required for reliable remote access
- Supports individual HDD sizes up to 4Tb for extended recording; Up to 2 HDD
- Free iOS and Android app: - Scroll though single/quad display live views - Playback specific cameras by date/time plus easy slider control - Audio monitoring support - Mobile PTZ control - Relay control - Up to 16 camera views from HD tablets (HD app)
- Multiple Control Inputs: mouse / front panel / hand held IR remote controller (included)
- Remote configuration support from built-in web interface and/or free CMS program
- Ethernet (10/100) interface for remote network viewing and control
- On-screen PTZ control via mouse or front panel
- Audio recording capabilities plus two-way audio support
- USB 2.0 ports on front and rear panels for video archive and mouse usage
- Free Windows CMS displays dozens of cameras
- Free MAC client software connects to individual sites for live view and playback
- Multi-language support
- Rack mountable with rack ears (order KA-ORM1)
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Camera packaging contents:
- WD1 960x480 recording delivers 36% more detail than traditional 4CIF (704x480)
- H.264 Compression for efficient HDD utilization and streaming
- NTSC/PAL automatic signal selection
- WD1 real-time live display and recording all channels; real time playback on up to 4 channels
- Independent channel setup for resolution/FPS/bitrate/image quality/normal & event record
- HDMI (720p/1080p) + VGA (to 1920x1080) + BNC main monitors support any type of display
- Simultaneous high bandwidth recording (480 NTSC/400 PAL @WD1) plus sub-stream recording for reduced bandwidth remote viewing
- Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
- Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
- User friendly GUI with graphical icons and visual indicators - Easy to use on-screen menus include digital zoom and instant playback of recent video - Operate using front panel controls, wheel mouse or included IR remote
- Quickly locate and review event video - Search by date/time, or preview images by pointing along a color coded timeline of record type - Tag video of interest for easy retrieval or export - Play based on results of extensive event/alarm log search - Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list instances of motion in that area for review by the operator
- Watermarking for validation of recorded video
- Easy router setup for remote access: uPnP automatically sets up port forwarding (router must support/allow uPnP)
- Free DDNS Service – static IP address is not required for reliable remote access
- Supports individual HDD sizes up to 4Tb for extended recording; Up to 2 HDD
- Free iOS and Android app: - Scroll though single/quad display live views - Playback specific cameras by date/time plus easy slider control - Audio monitoring support - Mobile PTZ control - Relay control - Up to 16 camera views from HD tablets (HD app)
- Multiple Control Inputs: mouse / front panel / hand held IR remote controller (included)
- Remote configuration support from built-in web interface and/or free CMS program
- Ethernet (10/100) interface for remote network viewing and control
- On-screen PTZ control via mouse or front panel
- Audio recording capabilities plus two-way audio support
- USB 2.0 ports on front and rear panels for video archive and mouse usage
- Free Windows CMS displays dozens of cameras
- Free MAC client software connects to individual sites for live view and playback
- Multi-language support
- Rack mountable with rack ears (order KA-ORM1)
| Video inputs | 8-ch |
| Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL /NTSC auto detection |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Two-way audio | Audio input pass through to remote web or CMS client; remote audio from web or CMS client pass through to audio output |
| Encoding resolution | WD1 (960x480) / 4CIF / 2CIF / CIF / QCIF |
| Video compression | H.264 |
| Dual-stream | Supported; sub-stream @ CIF/ QCIF @ 25 fps (P) / 30 fps (N) |
| Stream types | Video, Video & Audio |
| Frame rate per camera | 25 fps (P) / 30 fps (N) |
| Video bit rate per camera | 32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps) |
| Recording Modes | Continuous, Motion |
| Motion Detection | Configurable per camera for area(s), sensitivity and arming schedule programmable by day of week and hour of day |
| Schedule Period | Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays |
| Pre- and Post- Event Recording | Pre-record 0~30 seconds; post record 5s~10 minutes |
| Audio compression | G.711 |
| Audio bit rate | 64 Kbps |
| HDMI/VGA output | 1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Synchronous playback | 8-ch |
| Playback search modes | Time/Date; motion or log event; Manual Tags; Smart Search for motion events from recorded video |
| Playback Controls | Play; Pause; Forward/Reverse; speed control for single~1.8~16X; Slide bar with overview of record type and snapshot display from slider position |
| Digital Zoom During Playback | Supported on Local Displays and CMS |
| SATA | 2 SATA interfaces |
| Capacity | Up to 4TB capacity for each disk |
| NAS/SAN | up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk) |
| Network interface | 1, RJ45 10M / 100M Ethernet interface |
| DST/NTP | Supported; choice of time zone, NTP server, DST start/end/offset |
| Port Mapping/uPnP | Automatic port forwarding/redirection using uPnP on routers with this capability |
| Serial interface | 1 RS-485 interface, half-duplex |
| USB interface | 2, USB 2.0 |
| Built-in Web Server Interface | Live view, playback and configuration via IE, Chrome, Firefox, Safari (with free plug-in/extension installed) |
| CMS | PC and MAC Client supports multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 16 cameras in playback |
| Mobile Apps | iOS and Android supported ; live 1 & 4 camera views; single camera playback; snapshots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, displays up to 16 live view cameras |
| User Rights Control | Per user-per camera for multiple functions |
| Event Logging | Multiple types: alarm, exception, operation, information; dozens of sub-types within each major type |
| Firmware Upgrade | From USB or remotely |
| Backup/Restore Configuration | From USB or remotely |
| Power supply | 12 VDC |
| Consumption | ≤ 15 W |
| Operating Temperature | -10 ºC ~+55 ºC |
| Operating Humidity Range | 10% ~ 90% |
| Chassis Type | 19-inch rack-mountable 1U chassis (Optional rack ears KA-ORM1) |
| Dimensions (W × D × H) | 17.52” x 11.42” x 1.77” 445 × 290 × 45mm |
| Weight | ≤ 8.8 lb. ≤ 4 kg (without hard disk) |
Quick%20Installation%20Guide%20OMNI960%20Series%20DVRs%20V0.4.pdf
