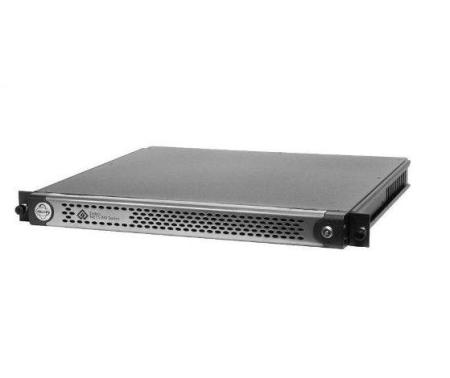

NET5308T-EXP 8 CH DUAL STRM IP BASED ENC EXP BOX
SKU: NET5308T-EXP- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The NET5308T-EXP from Pelco is a Encodes an additional 8 video inputs, 8 audio inputs, and control data for transmission and integration with the NET5308T; adds 8 alarm inputs and 4 relay outputs
Features:
- 8 Video Inputs, Expandable to 16 Video Inputs
- 2 Simultaneous MPEG-4 Video Streams per Input
- Up to 30 High Quality (4CIF) Images per Second per Stream
- Video, Audio, and Data over IP Network
- Simultaneously View Video on a Computer User Interface, Console User Interface, and Video Decoder
- Adaptive Deinterlacing Technology
- 8 Programmable Alarm Inputs (Supervised or Unsupervised), 4 Relay Outputs, Expandable to 16 Alarm Inputs and 8 Relay Outputs
- 2 Security Modes
- Video Loss Indicator
- PTZ Support using Pelco P or Pelco D (RS-422) and Coaxitron® (up-the-coax) Protocols
Specifications :
Model | NET5308T-EXP |
Video Standards | NTSC/PAL/EIA/CCIR composite |
Video Coding | MPEG-4 |
Video Streams | 2, simultaneous per input |
Video Resolutions 4CIF | NTSC: 704 x 480; PAL: 704 x 576 |
Video Resolutions 2CIF | NTSC: 704 x 240; PAL: 704 x 288 |
Video Resolutions CIF | NTSC: 352 x 240; PAL: 352 x 288 |
Video Resolutions QCIF | NTSC: 176 x 120; PAL: 176 x 144 |
Video Inputs (Video/Expansion) | 8, BNC, looping, 0.5-1 Vp-p |
Video Termination | Software controlled |
Video Sequence Output (Video/Expansion) | 1, BNC, 1 Vp-p |
Audio Encoding | G.711 speech codec |
Audio Bit Rate | 64 kbps |
Audio Levels | 1 Vp-p, 10 kohms |
Audio Connectors | 8, 3.5 mm monaural |
Connector Tip | Signal high |
Connector Sleeve | Common |
Audio Inputs | Line in |
PTZ Interface | RS-422, Video in |
PTZ Protocols | Coaxitron (video/expansion) Pelco D/Pelco P (base) |
Alarm Inputs | 8, programmable, 5.0 VDC 10 kohms, triggered; expandable to 16 |
Relay Output | 4, form-C relay, 30 VDC, 1 A; expandable to 8 |
Zones | 3 plus background zone |
Zone Types | Any shape, user-definable in 16 x 16 pixel blocks |
Sensitivity | Adjustable |
Power Input | 100 to 240 VAC 50/60 Hz, autoranging |
Power Consumption (maximum) | 40 W, 137 BTU/H (each module) |
Operating Temperature | 50°F to 95°F (10° to 35°C) at unit air intake (front of unit) |
Storage Temperature | -40° to 149°F (-40° to 65°C) |
Operating Humidity | 20% to 80%, noncondensing |
Maximum Humidity | Gradient 10% per hour |
Operating Altitude | -50 ft to 10,000 ft (-15.2 m to 3,048 m) |
Operating Vibration | 0.25 G at 3 Hz to 200 Hz at a sweep rate of 0.5 octave/minute |
Construction | Steel cabinet |
Finish Bezel | Gray metallic with black end caps |
Finish Chassis | Black matte finish |
Mounting | Rack* (1 RU) *Rack ears and screws provided |
Unit Weight | 13.4 lb (6.1 kg) |
Dimensions | 16.7" D x 17.0" W x 1.7" H (42.4 x 43.2 x 4.3 cm) |
